Cascade Hotswap 60% PCB
By purchasing this PCB you acknowledge the PCB return/replacement policy in our Terms.

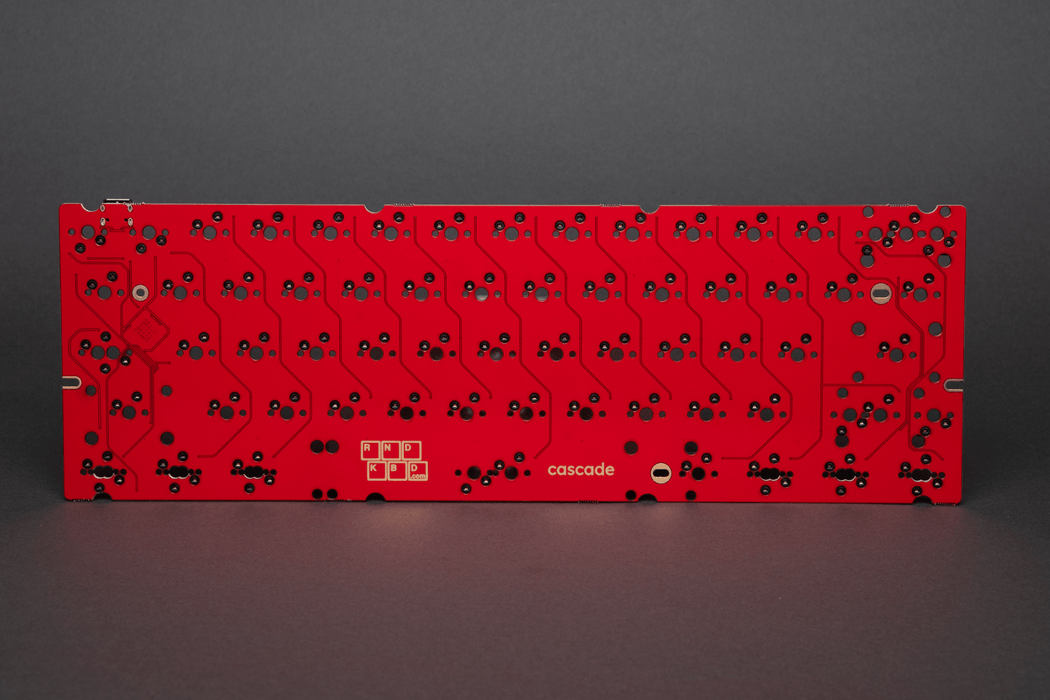

Cascade is a universal 1.6mm thick 60% USB-C PCB designed to support the most common layouts used. It features RGB underglow, JST support, and is QMK/VIA compatible. The variant without the USB-C is a perfect drop in replacement for the Bakeneko60 and other gummy mount boards. Cascade is named after Cascade Mountain, located near Banff National Park in Alberta, Canada.
With USB-C Connector: For standard boards such as the PLA60 that use the soldered on USB-C Connector.
Without USB-C Connector: For Bakeneko style boards that use a Unified Daughterboard.
No JST Cable included, can be added separately from this page.
Features
Hotswap 60% USB-C PCB (solder available soon)
MX-compatible switches only
ATMEGA32U4 MCU
Overcurrent & ESD protection
RGB underglow
Tray & Unikorn R1 mounting points
QMK/VIA compatibility
Hotswap/Solder variants
Additional Information

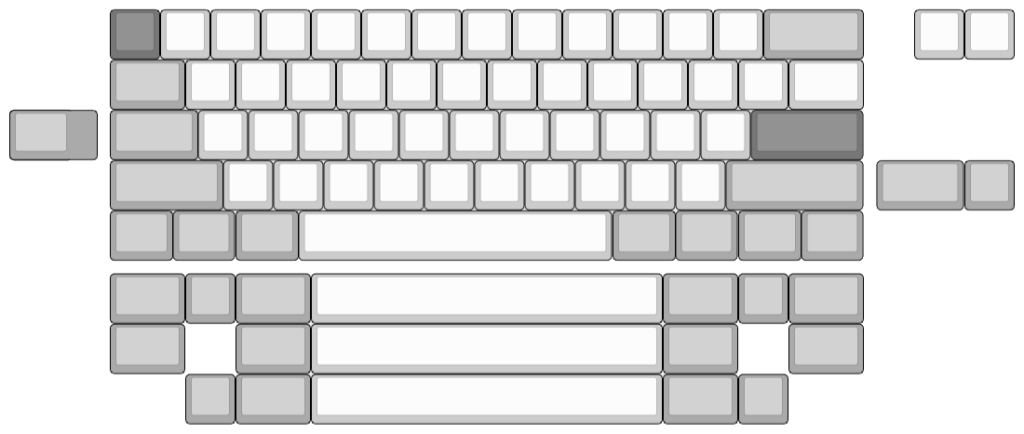

Inspired by PCBs such as 4pplet’s waffling60 and hineybush’s h60, both the solder and hotswap variant of this PCB can support multiple layouts including split-backspace, split right-shift, stepped/normal caps-lock, and ANSI/tsangan bottom rows. Powered by the trusty ATMEGA32U4 chip, Cascade has ESD data line protection, a PTC fuse for overcurrent protection, and is QMK and VIA compatible out of the box.
NOTE: For the hotswap variant, cherry profile keycaps may have trouble bottoming out on regular caps lock since it has a north facing profile in order to accommodate a stepped caps lock option. North-facing switches in general have bottom-out issues specifically for the R3 cherry profile, however the only place affected on the Cascade PCB is regular caps lock (1.75U). I consider this as more of an inconvenience than a major issue. – kbye
