H87/H88 Solder TKL PCB

H87/H88 Solder TKL PCB

by MOHIT
Save 11% Save 11%
$44.99 CAD
$44.99 CAD - $44.99 CAD
$44.99 CAD
$39.99 CAD
$39.99 CAD - $39.99 CAD
$39.99 CAD

Solderable TKL PCBs by Mohit have arrived!

By purchasing this PCB you acknowledge the PCB return/replacement policy in our Terms.

  • H87 / H88 compatible PCB
  • QMK / VIAL / VIA compatible
  • Black core 1.6mm PCB
  • 1.47mm switch holes for Mill-Max compatibility

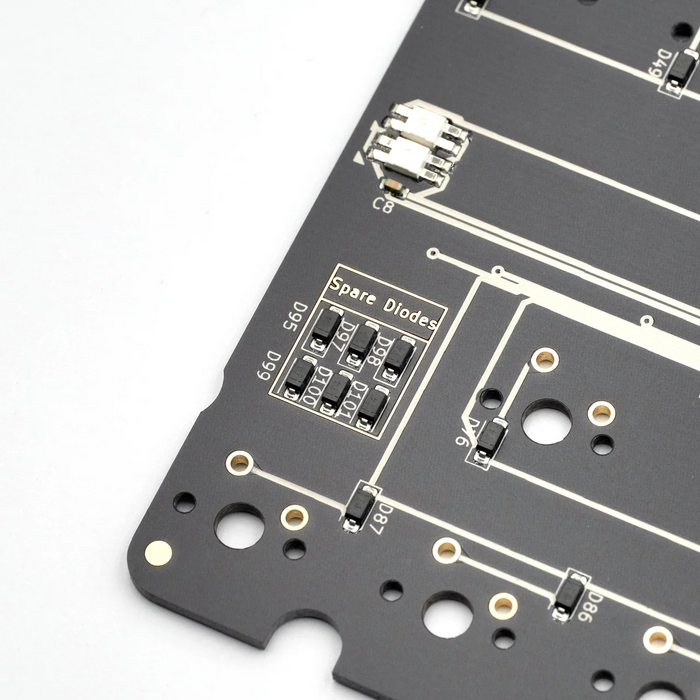

  • Spare on-board diodes for easy replacement
  • Through-hole Caps Lock and Scroll Lock LEDs

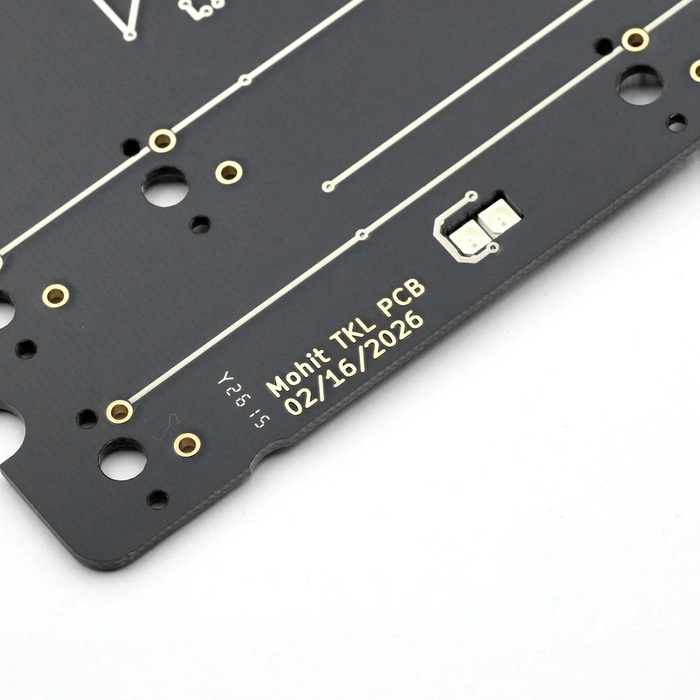

  • Dedicated badge LEDs next to arrow cluster

Thanks to ktechs for the photos.

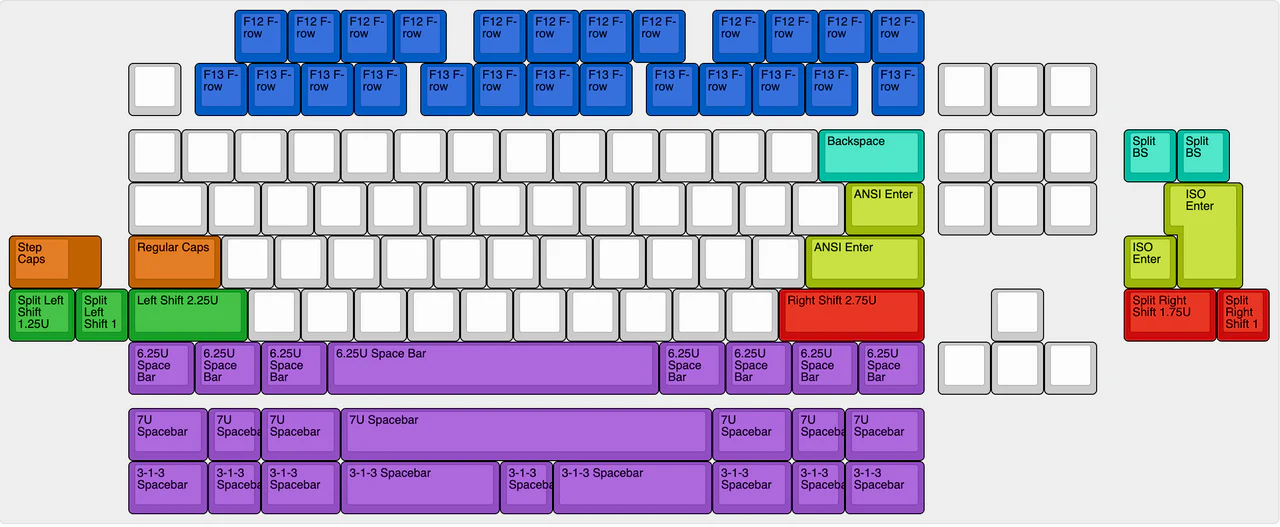

Layout Support
  • F12 / F13 F-row
  • Split backspace
  • Step caps
  • ANSI / ISO enter
  • Split left shift
  • Split right shift
  • 6.25u spacebar
  • 7u spacebar
  • 3-1-3 spacebar
Connector Support

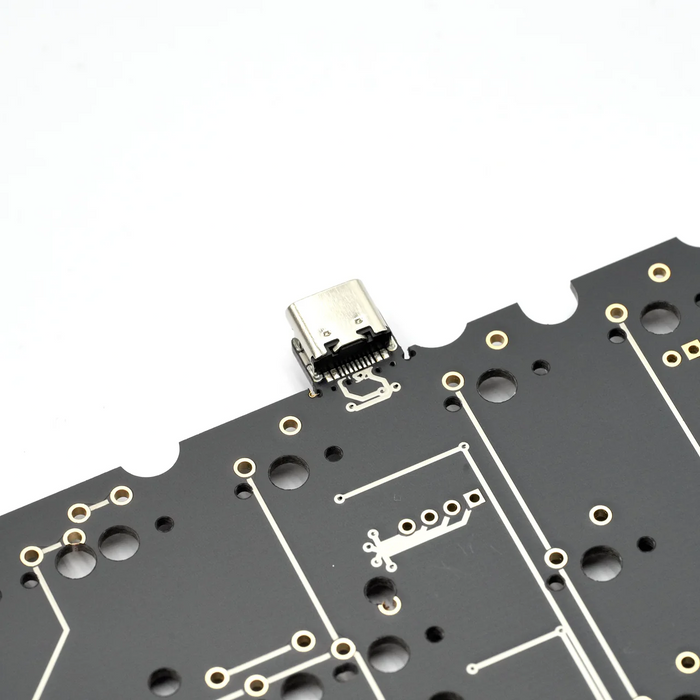

  • Front-side USB Type-C
  • Back-side USB Type-C
  • Break-away USB-C or soldered cable option
  • Standard TKL JST position
  • JST near MCU (Alina)
  • MX 1.25P centered (Ayleen TKL)
